SJ-45*25 Extrusion Line
發(fā)布時間：2014-07-07 瀏覽：4671次

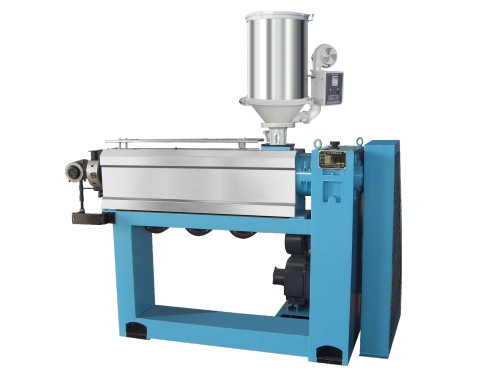

SJ-45*25 ELectrical Wire & Cable Extrusion Line
MAIN TECHNICAL PARAMETERS
|
SJ-45*25 Extruder |
TQLV-700 Wheel type haul off |
TPG-630 Dual reel type take up and traverse |
|||
|
Screw dia./L-D ratio |
45mm/25:1 | Traction type | Dual aluminum wheel | Reel size | PN400-630mm |
| Screw speed |
10-110 r/min |
Traction force | 300kg | Traverse type | Polished rod |
| Drive power | 11kw (AC/DC) | Traction speed | 6-300m/min | Dia. of traverse shaft | 30mm |
| Temperature control segments (body/head) | 3/2 | Motor power | 5.5kw (AC/DC) | Take up speed | 0-340m/min |
| Heating power of machine body | 10kw | Wheel width |
150mm |
Dia. of take up shaft | 44mm |
| Max. extrusion output | 50kg/h | Traction gear | Three-gear speed | Take up tension | Torque adjustment |
